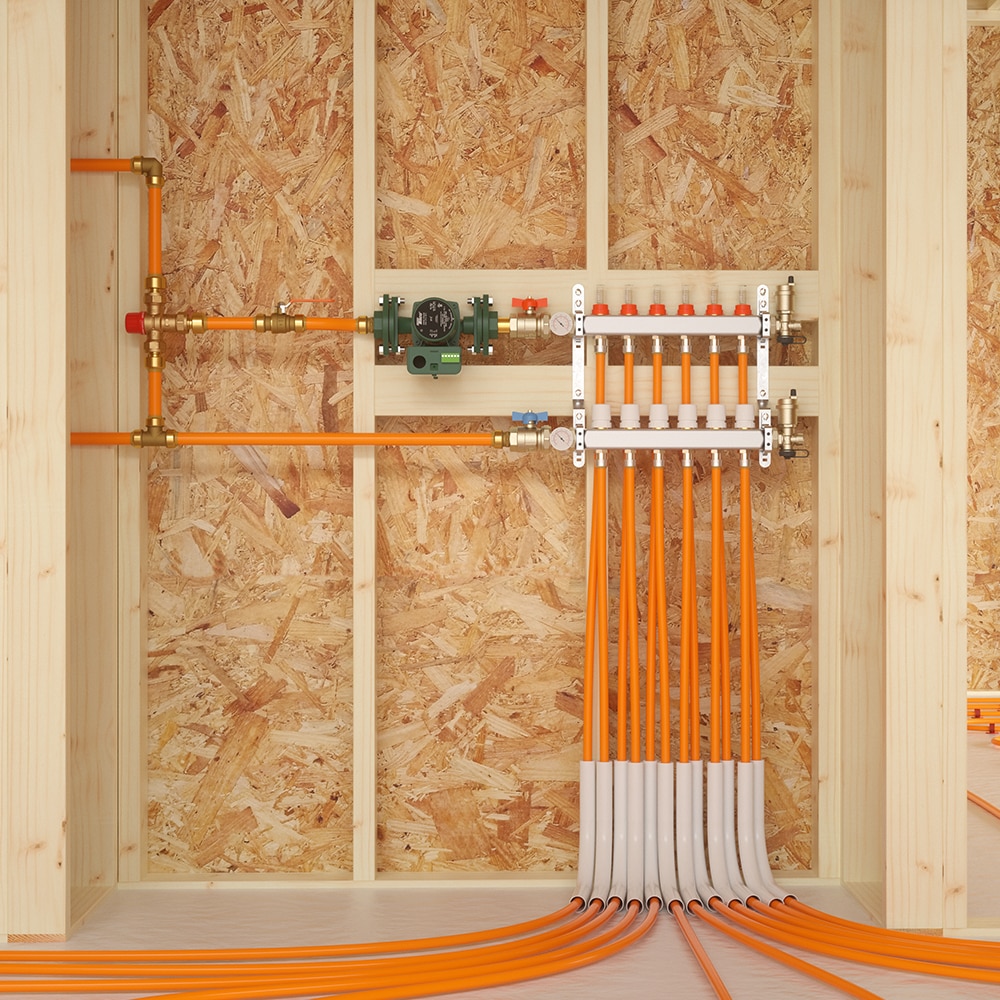

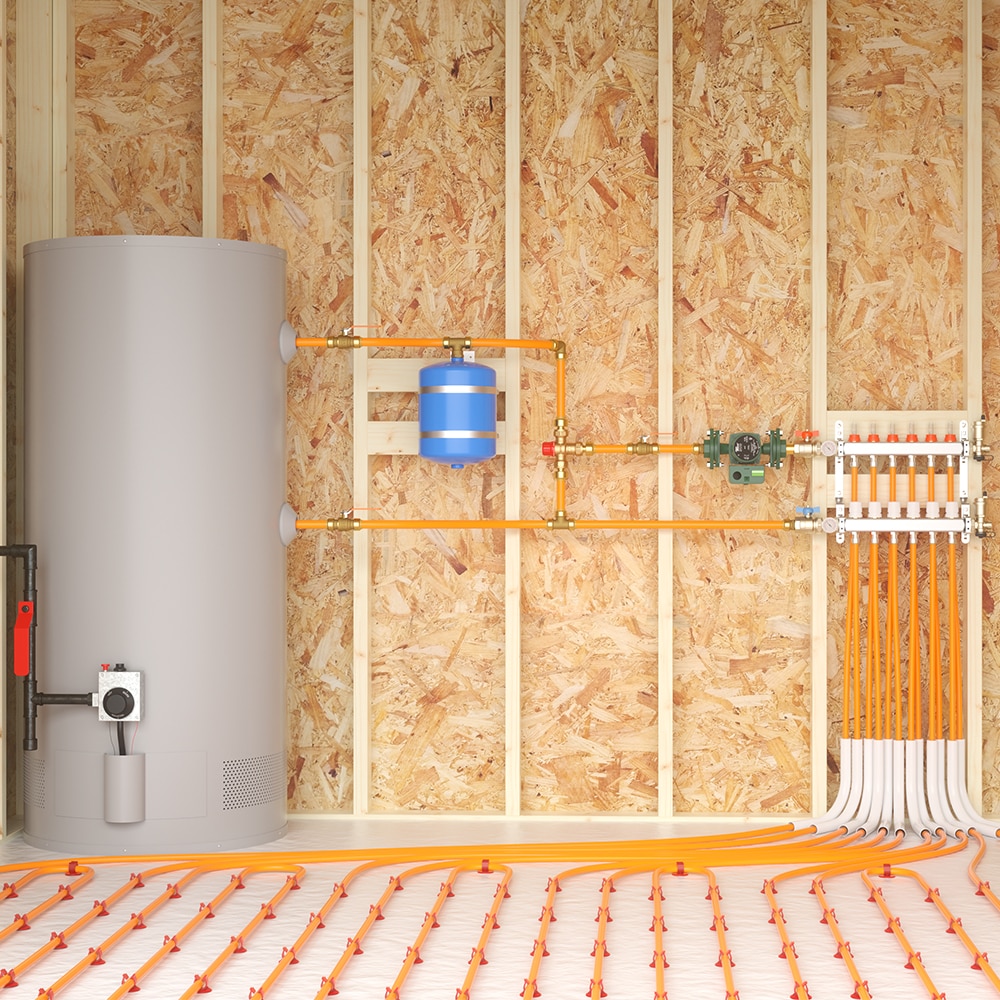

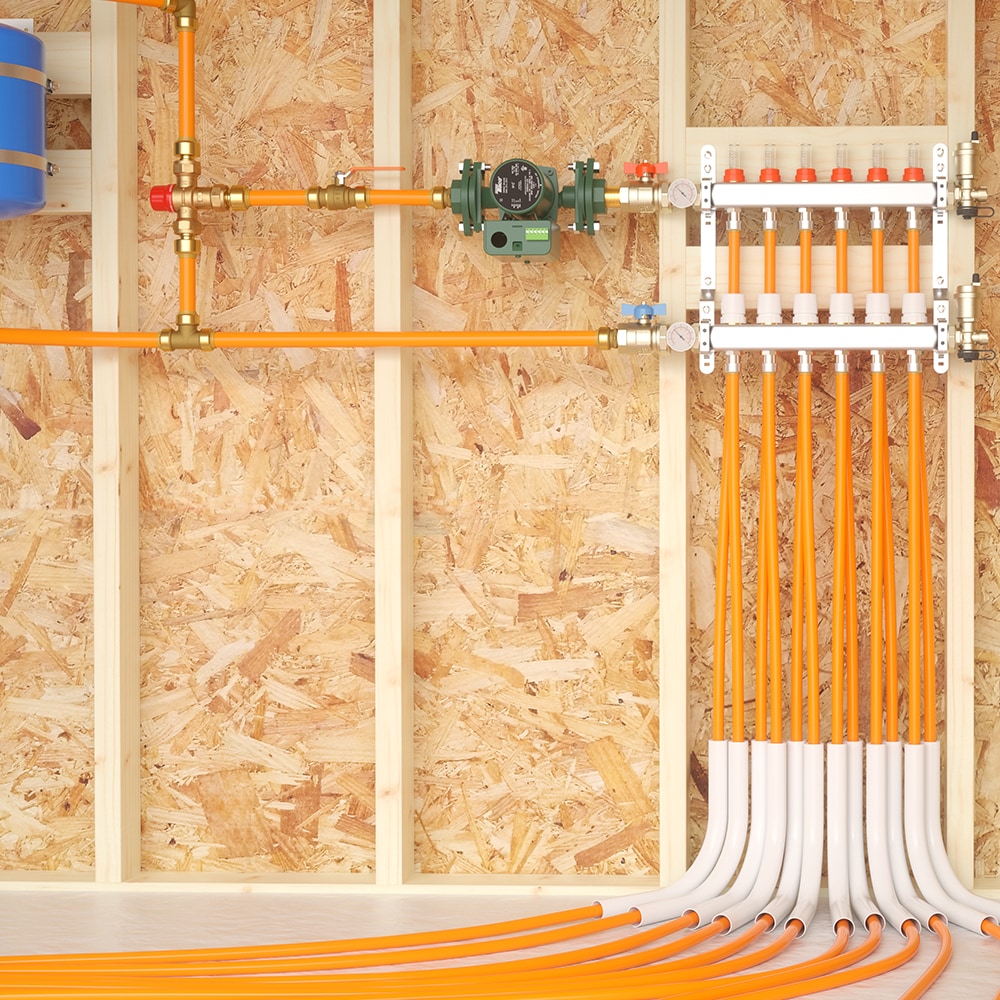

The SharkBite 7 loop radiant heating manifold is designed to optimally distribute heating fluid throughout circuits in a closed loop heating system. The manifold ensures that flow to each circuit is precisely regulated and also controls the shut-off, venting of air from the system. The fluid is heated by a water heater or boiler and distributed by the manifold throughout the different PEX tubing circuits. The manifold has a 1 In. FNPT inlet and features integrated 1/2 In. SharkBite connections on the loop ports. The SharkBite connections make connecting the loops to the manifolds significantly easier and faster than alternative connection methods.
Series Name: 7-Loop
Type: Radiant heating
Inlet 1 Fitting Diameter: 1-in
Inlet 2 Fitting Diameter: 1-in
Outlet Diameter: 1/2-in
Inlet 1 Ball Valves: Yes
Inlet 1 Fitting Orientation: Female
Inlet 1 Fitting Thread Type: NPTF
Inlet 1 Fitting Type: Threading
Inlet 2 Ball Valves: Yes
Inlet 2 Fitting Orientation: Female
Inlet 2 Fitting Thread Type: NPTF
Inlet 2 Fitting Type: Threading
Material: Brass
Maximum PSI (PSI): 87
Maximum Temperature (Fahrenheit): 200
Number of Loops: 7
Outlet Ball Valves: No
Outlet Material: Brass

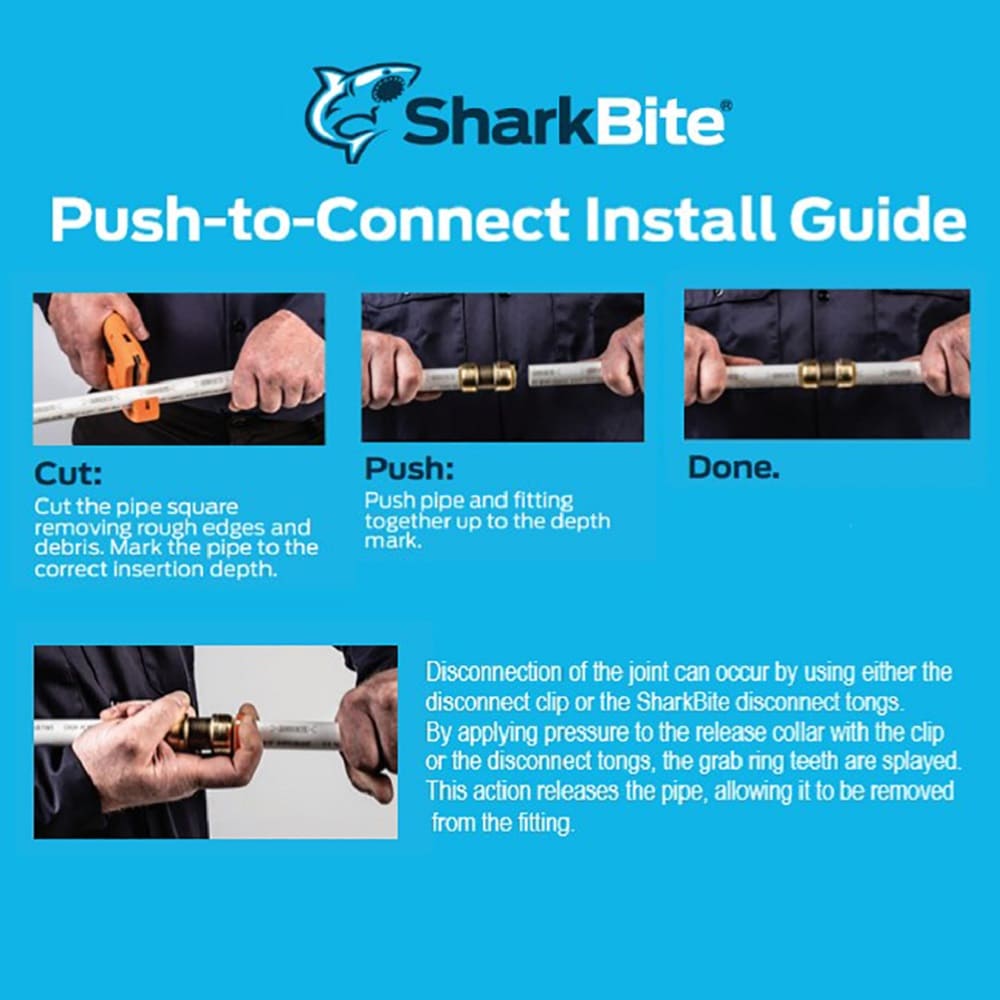

Outlet Type: Push-to-connect
Non-Oxygen Barrier PEX Compatible: Yes
Oxygen Barrier PEX Compatible: Yes
PEX-A Compatible: Yes
PEX-AL-PEX Compatible: No
PEX-B Compatible: Yes
PEX-C Compatible: Yes
CA Residents: Prop 65 Warning(s): Yes
Warranty: 2-year limited
UNSPSC: 40101800
