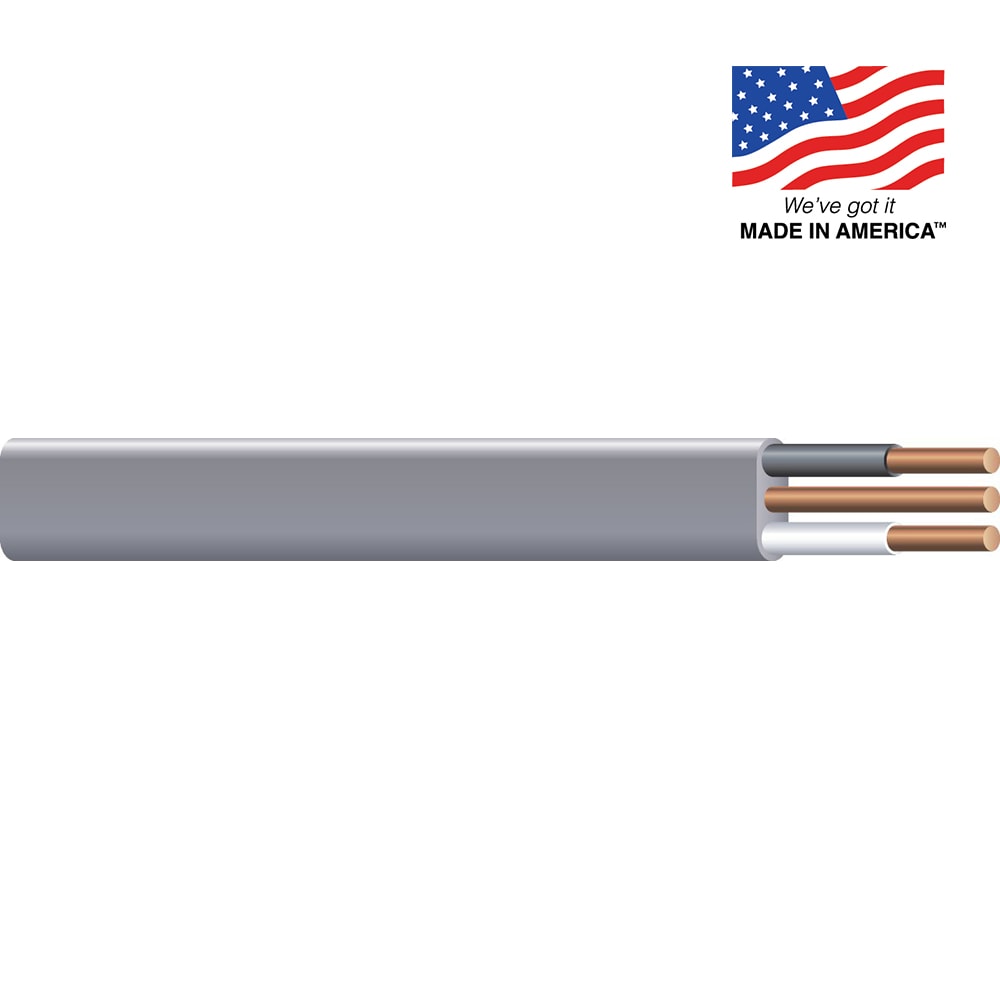

Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed.
Sub-Brand: N/A
Cable Length (Feet): 50
Weight (lbs.): 4.7567
Commercial/Residential: Commercial/Residential
Direct Burial: Yes
Fire Resistant: No
Ground Wire: Yes
Maximum Amperage: 20
Moisture Resistant: Yes
Number of Conductors: 2
RoHs Compliant: Yes
Shielded: No
Stranded or Solid: Solid
Use Location: Indoor/Outdoor
UV Resistant: Yes
Voltage Rating: 600
Wire Cut Type: By-the-roll
Wire Gauge: 12
Conduit Compatible: No
CA Residents: Prop 65 Warning(s): No
Safety Listing: UL safety listing
Warranty: 1-year
UNSPSC: 60104900
