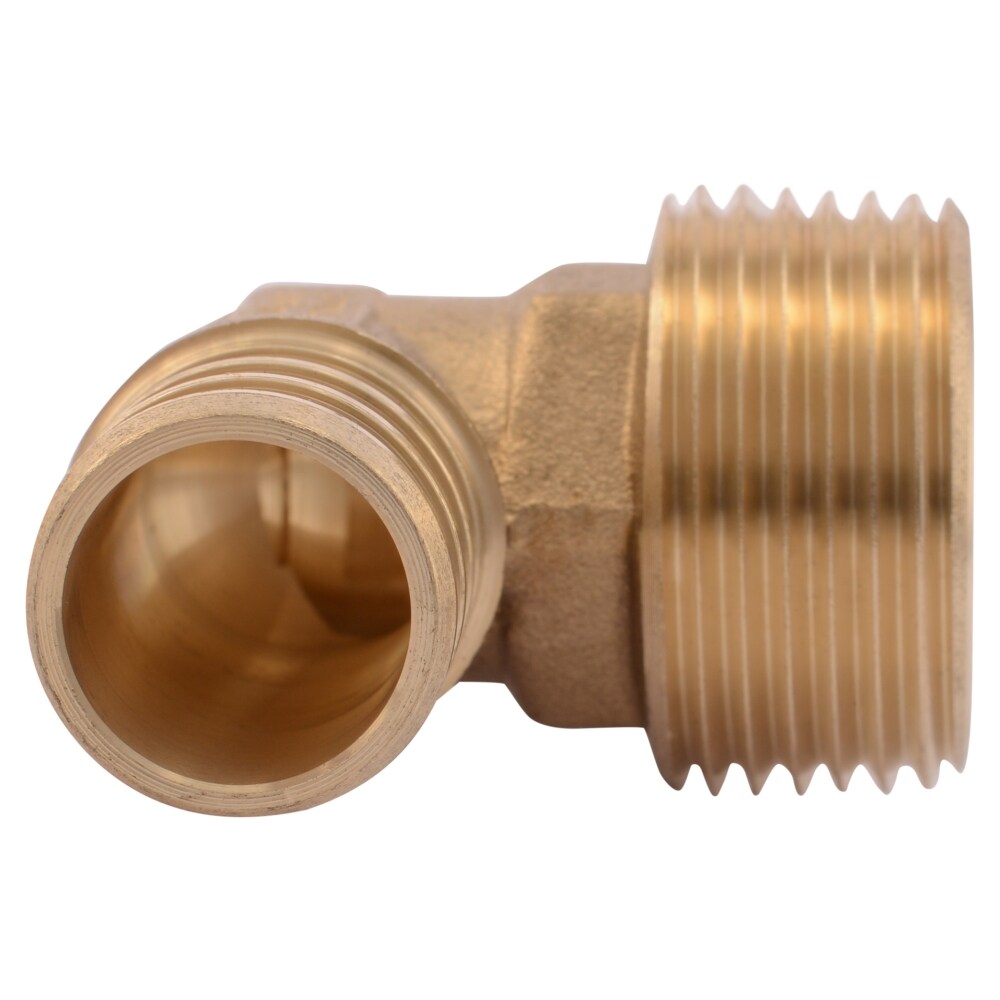

Make a 90 degree connection with PEX pipe. Transitions from PEX to an NPT threaded connection. Certified for use in potable water and hydronic heating systems.
Color/Finish Family: Bronze
Sub Type: Elbow
Type: Fitting
Diameter (End 1): 3/4-in
Diameter (End 2): 3/4-in
Code Approvals: ASTM F1807, NSF/ANSI/CAN 61, NSF/ANSI 372, ASTM E84, and CAN/ULC S102.2
Common Use: Potable water
Connection Type (End 1): Crimp
Connection Type (End 2): MNPT
Degree of Angle: 90
Fitting or Connection Type : Adapter elbow
Material: Brass
Maximum Working Pressure (PSI): 160
Maximum Working Temperature (Fahrenheit): 200
Minimum Working Temperature (Fahrenheit): 33
Package Quantity: 25

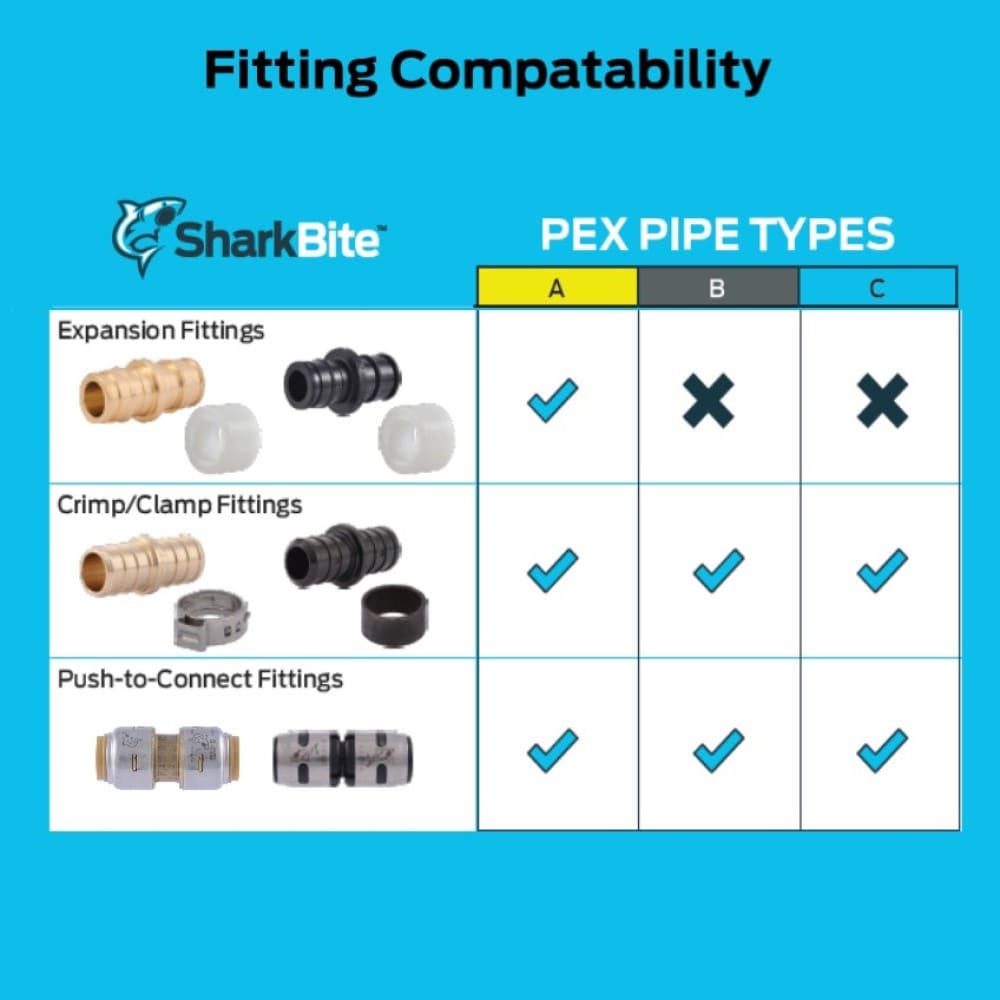

PEX Type: PEX-A/PEX-B/PEX-C
CA Residents: Prop 65 Warning(s): Yes
Complies with Federal Lead Guidelines: Yes
Safety Listing: NSF safety listing
Warranty: 25-year limited
UNSPSC: 26121600
