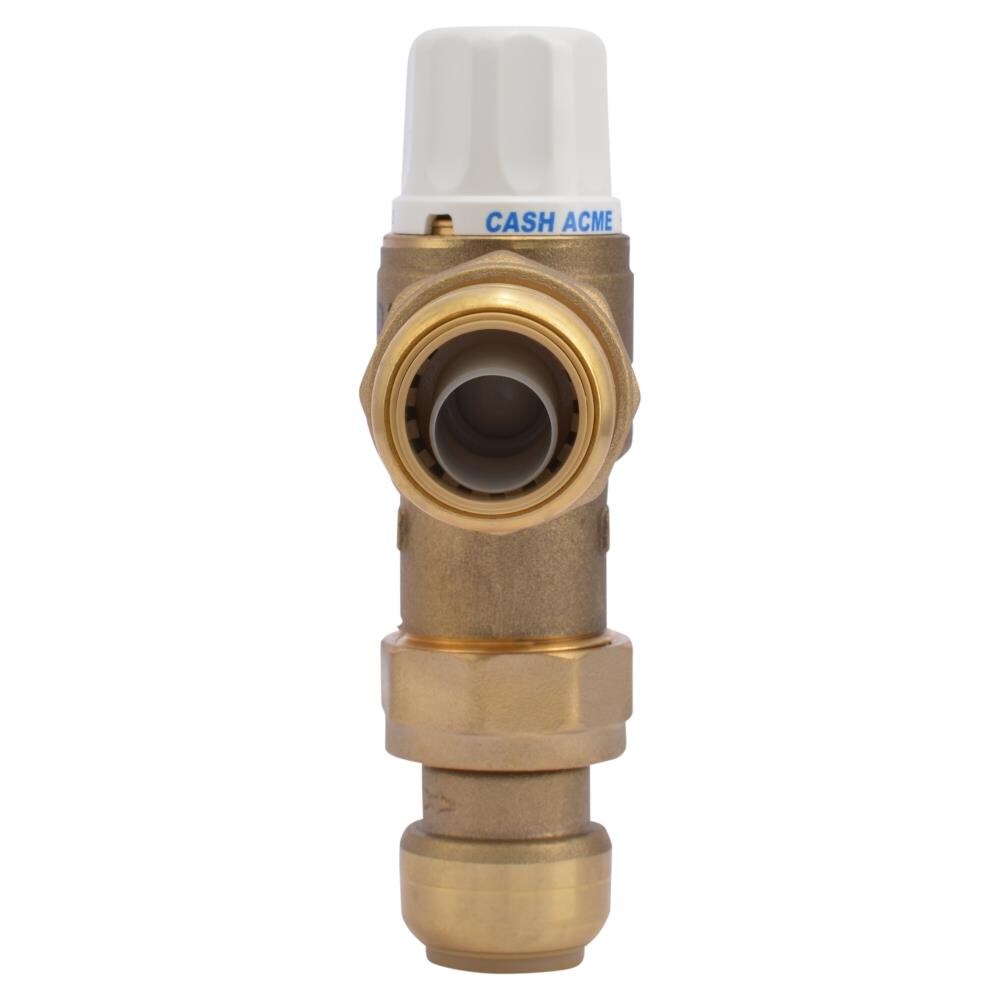

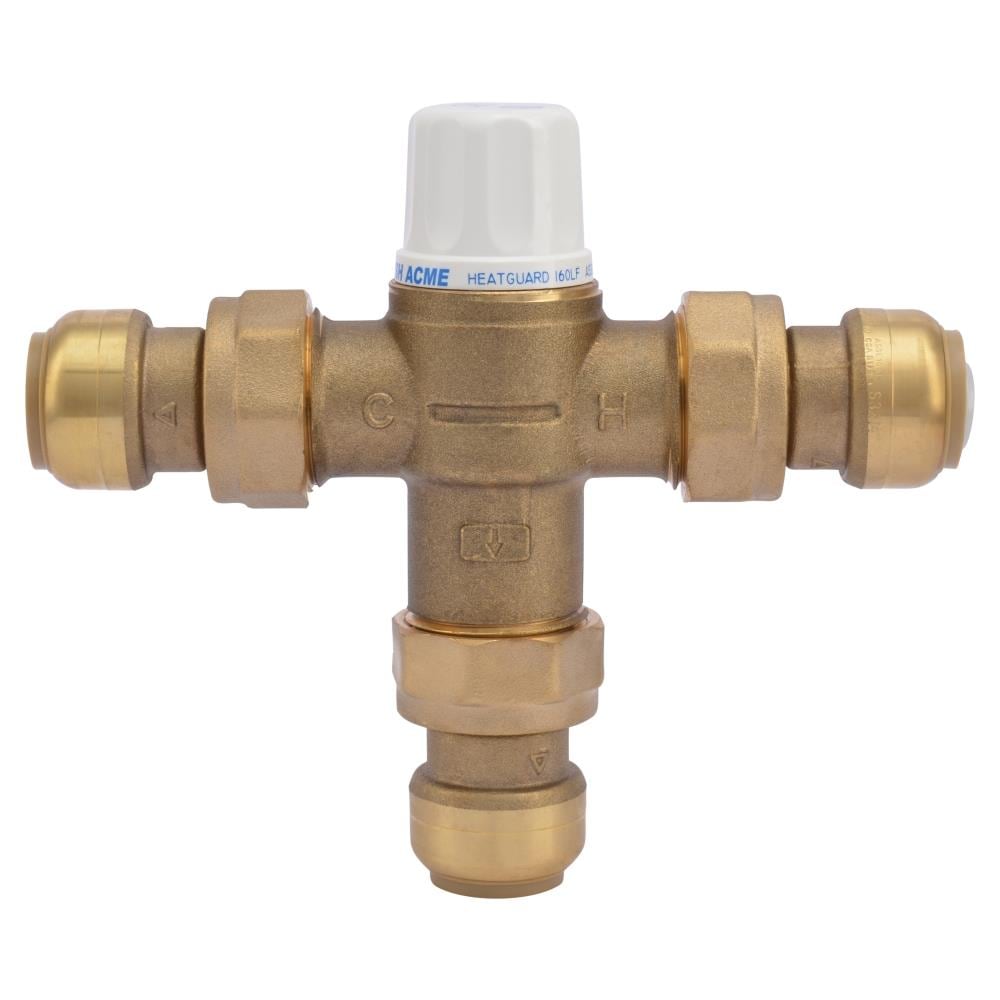

The HG160 LF is a next generation temperature actuated mixing valve that mixes hot water with cold to deliver tempered water at a controlled temperature. The Heatguard 160 is designed to assist in prevention of scalding and thermal shock. The Heatguard 160 LF is a compact, robust, simple product incorporating the latest in thermostatic technology. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120 degrees F (49 degrees C). Adj. Outlet temperature range: 95-120 degrees F (35-48.9 degrees C).
Type: Thermostatic mixing valve
Inlet Diameter: 3/4-in
Inlet Size in Inches: 3/4-in
Outlet Diameter: 3/4-in
Application: Tub; shower and faucet

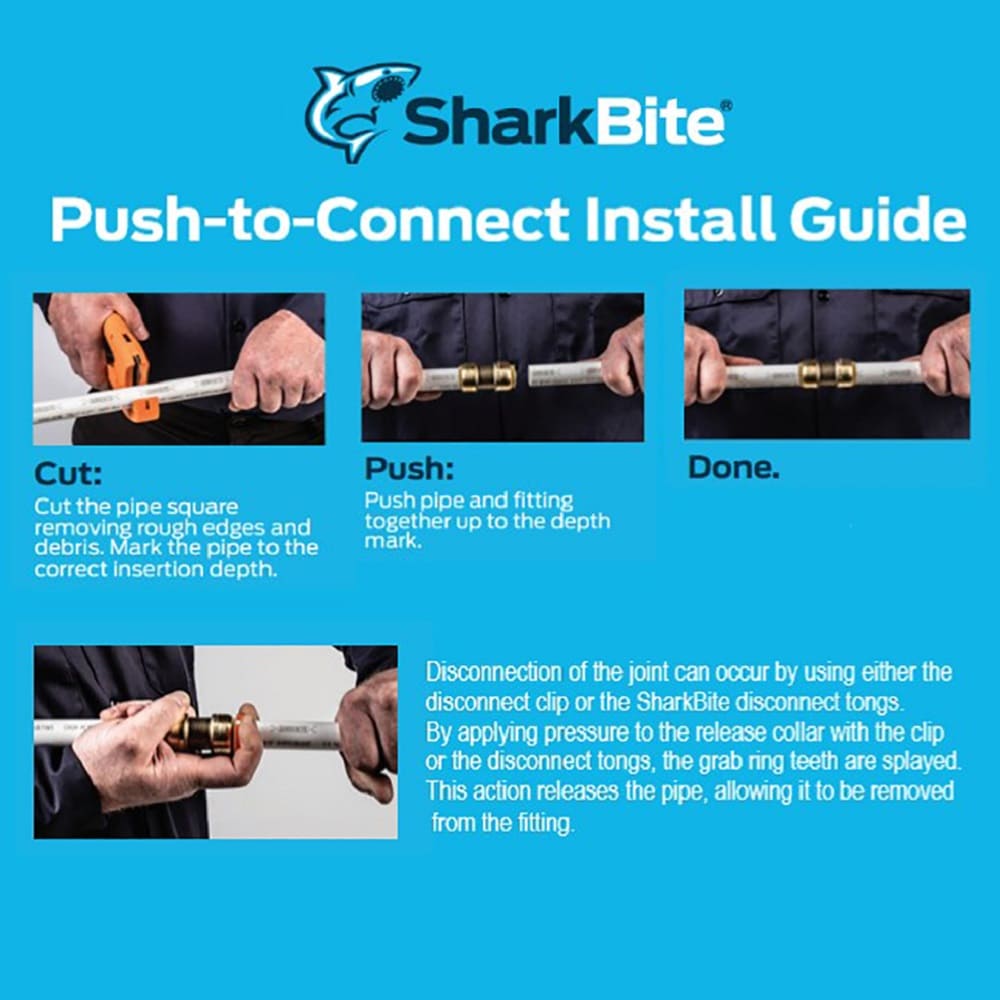

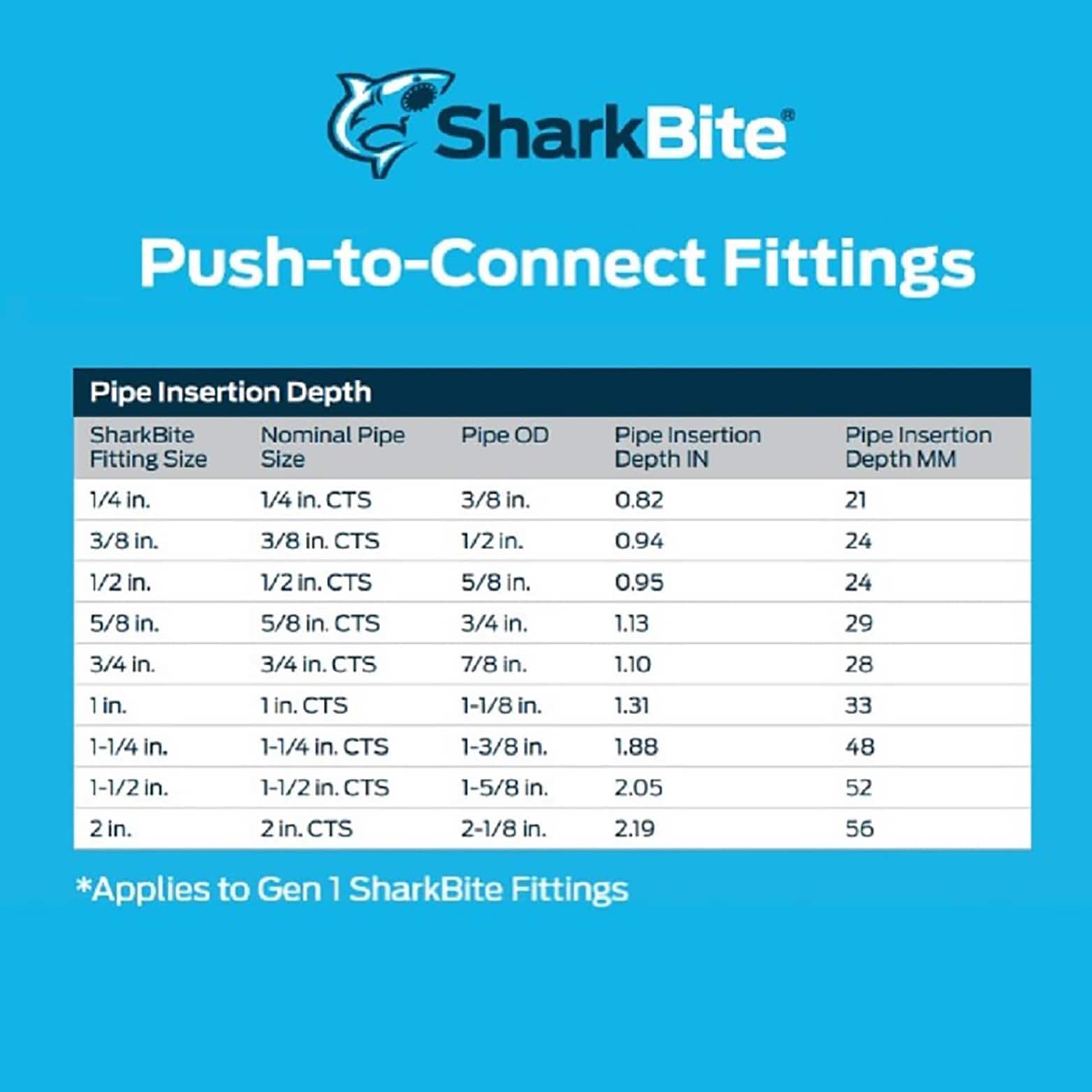

Inlet Thread Type: Push-to-connect
Material: Brass
Maximum Pressure PSI: 230
Outlet Thread Type: Push-to-connect
CA Residents: Prop 65 Warning(s): Yes
Complies with Federal Lead Guidelines: Yes
Warranty: 5-year limited
UNSPSC: 30181800
