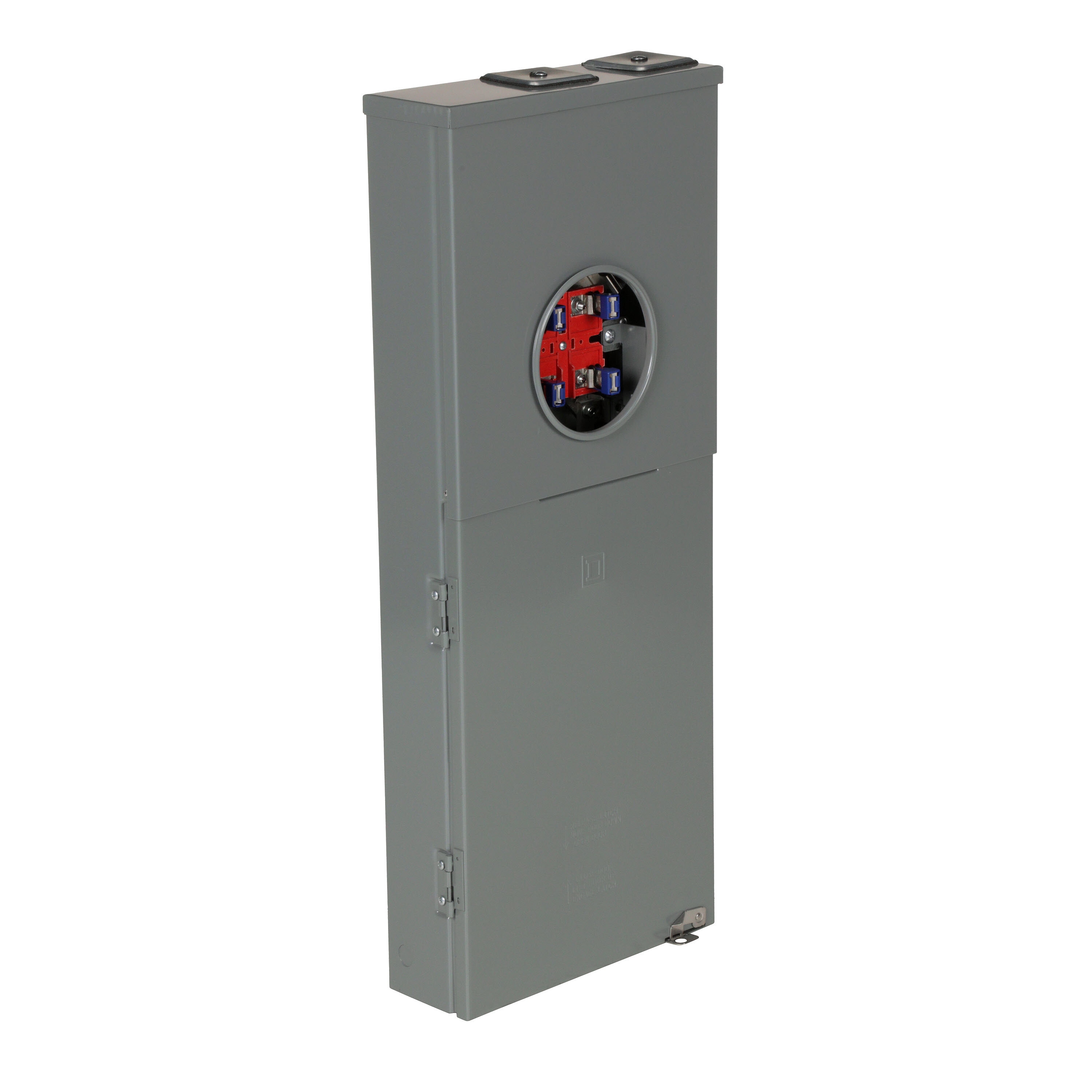

The Square D by Schneider Electric 200 Amp 20-Space 40-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 22,000 AIR. The combination service entrance device features a ring-type meter cover with a single-phase, 4-jaw meter socket. It is suitable for only overhead service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Square D Homeline CSED’s are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSED’s are engineered for fast installation and wire savings.
Manufacturer Color/Finish: Gray
Type: Main breaker meter combo
Depth (Inches): 36.6
Height (Inches): 6
Width (Inches): 15
Amperage: 200
Buss Bar Construction: Aluminum
Circuits: 40
Cover Included: Yes
Feed-Through Lugs: No
Ground Bar Installed: No
Mounting Type: Surface
Number of Spaces: 20
Orientation: Over/Under
Paintable: No
Phase Type: Single phase (120/240)
Plug-On Neutral: No
Usage: Service entrance
Use Location: Outdoor
Value Pack: Yes
Value Pack Contents: 1 – SO2040M200S 200A 20 Space/40 Circuit All-In-One Overhead Service Feed and Integral Ring-Type Meter Socket, 4 – HOM120, 1 – HOMT2020, 1 – HOM230, 1 – HOM250
Brand/Model Compatibility: Square D Homeline Brand Only
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: UL safety listing
Warranty: 18-month limited
UNSPSC: 39121100
