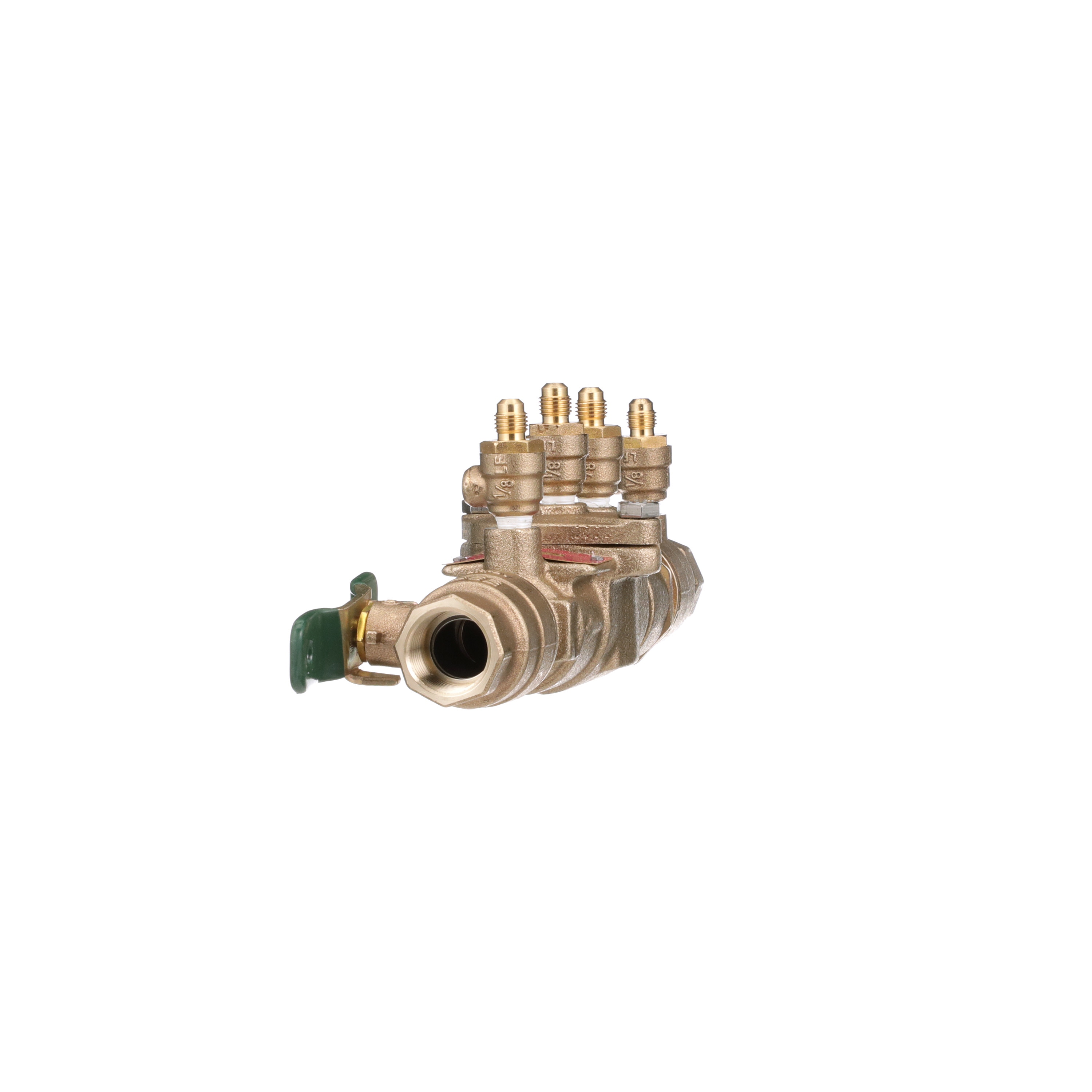

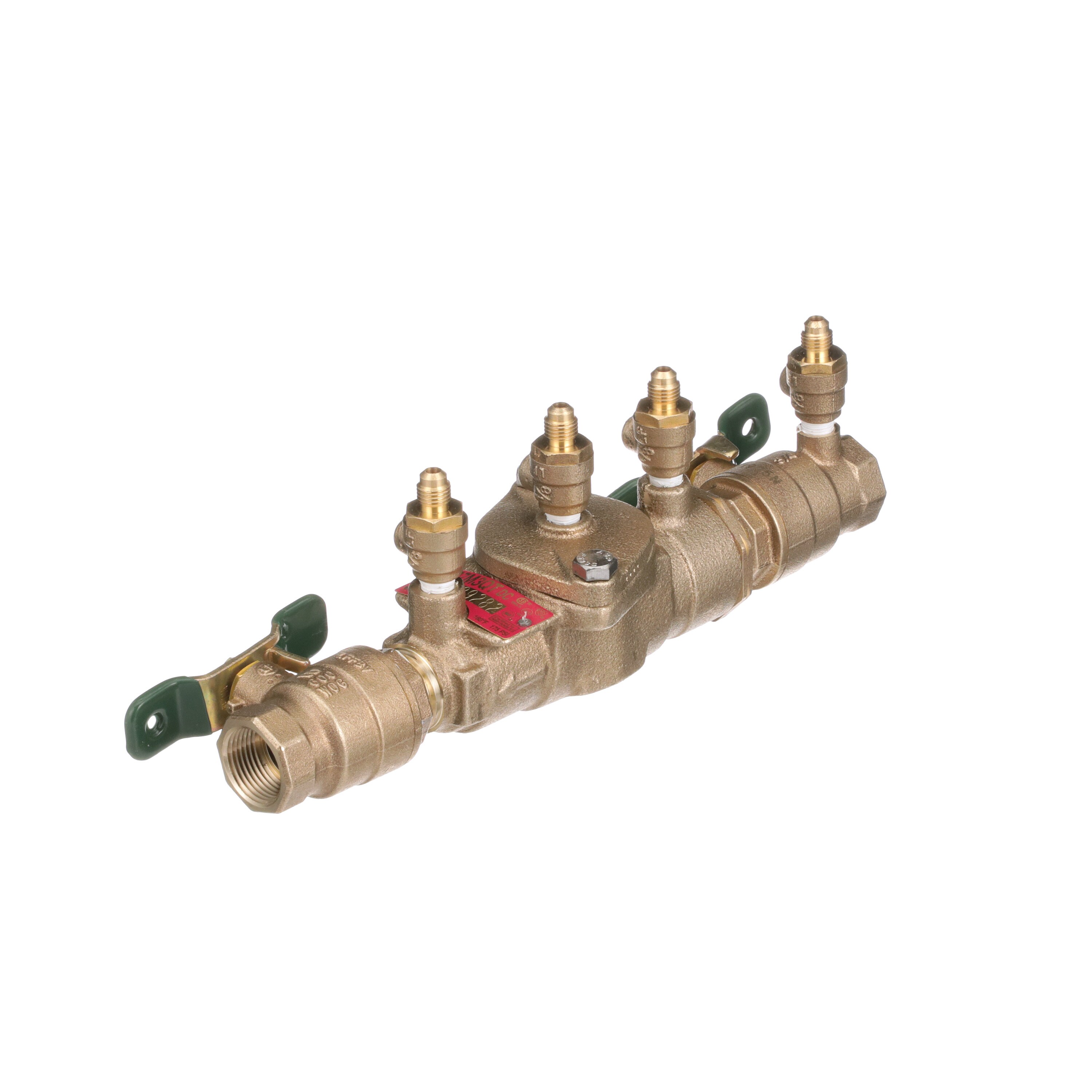

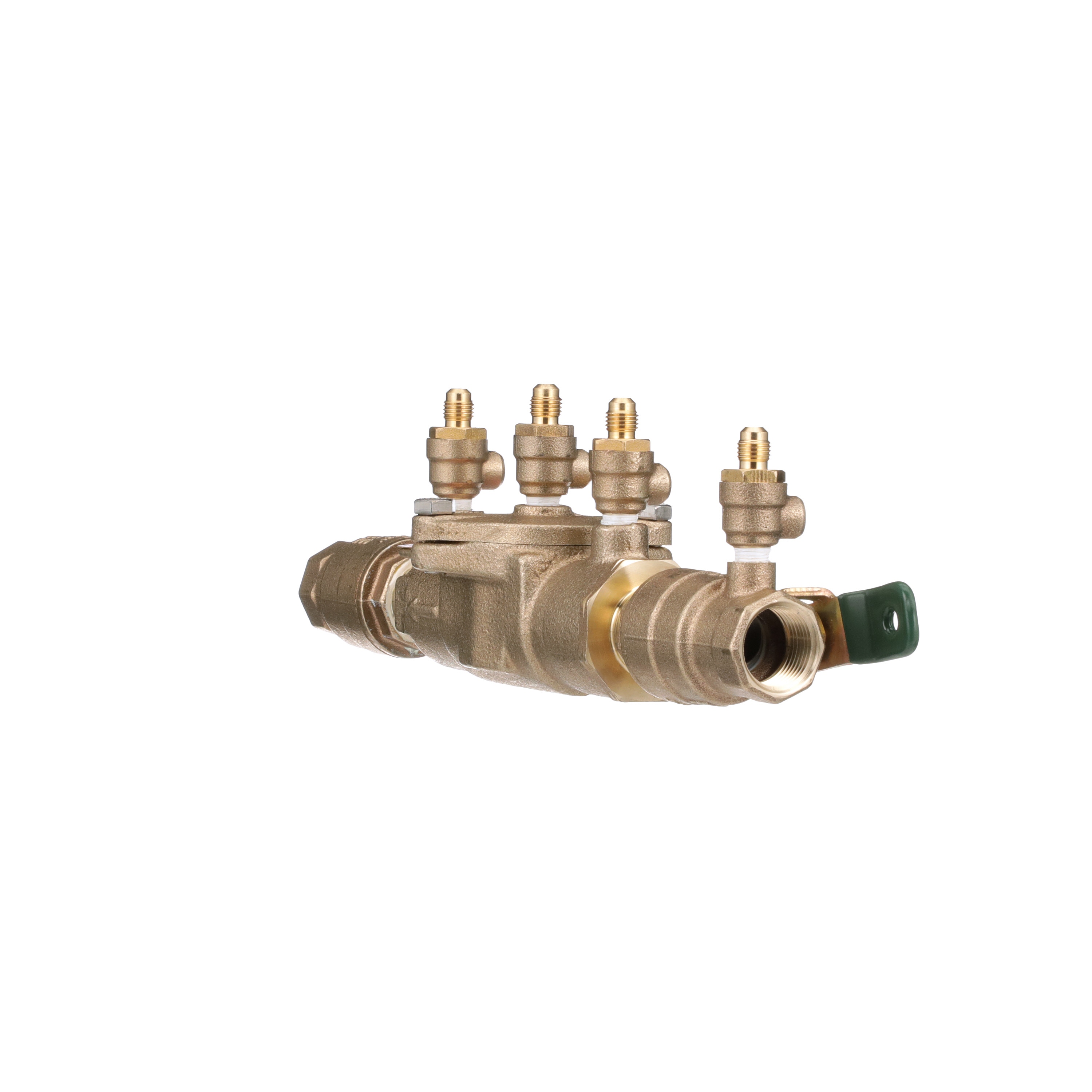

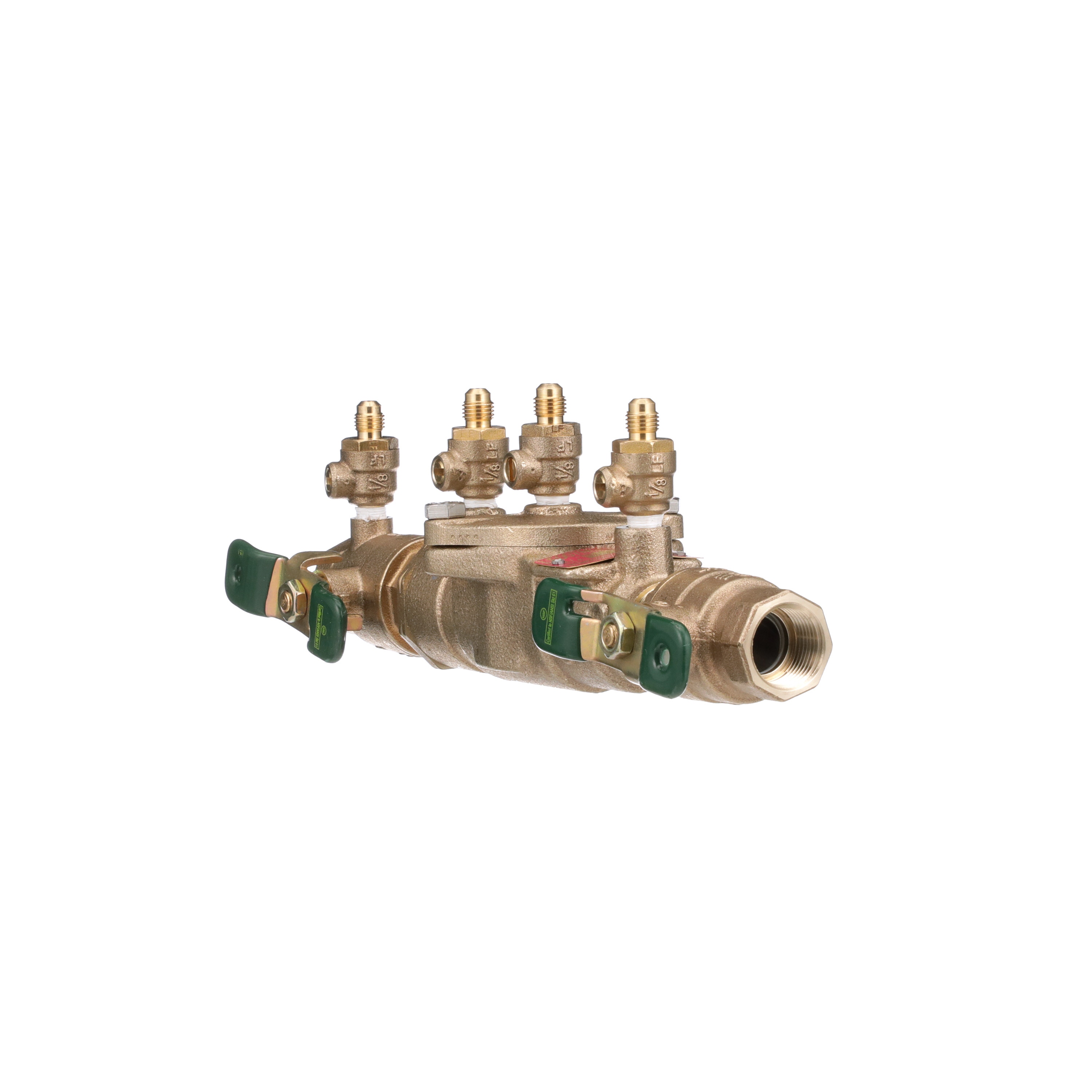

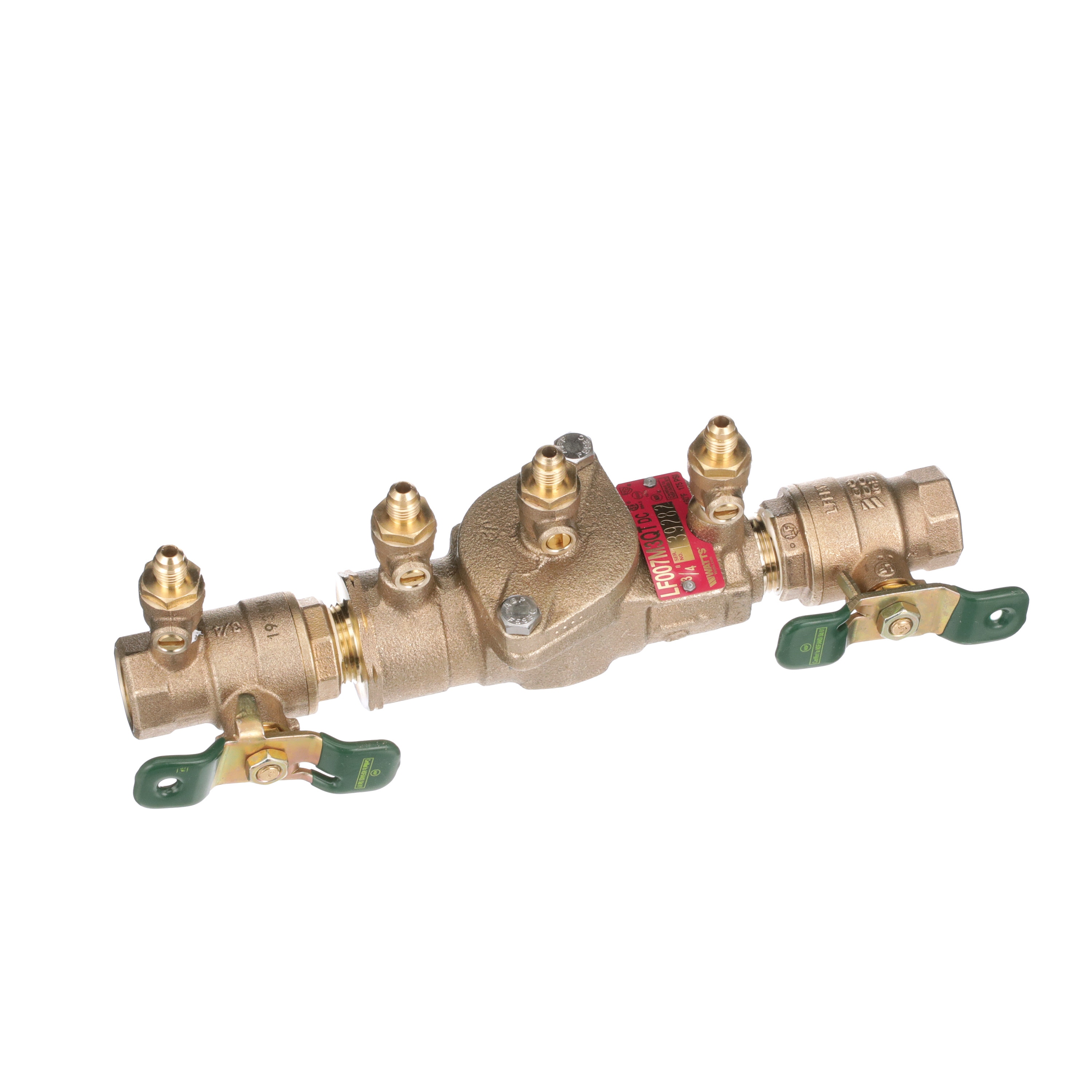

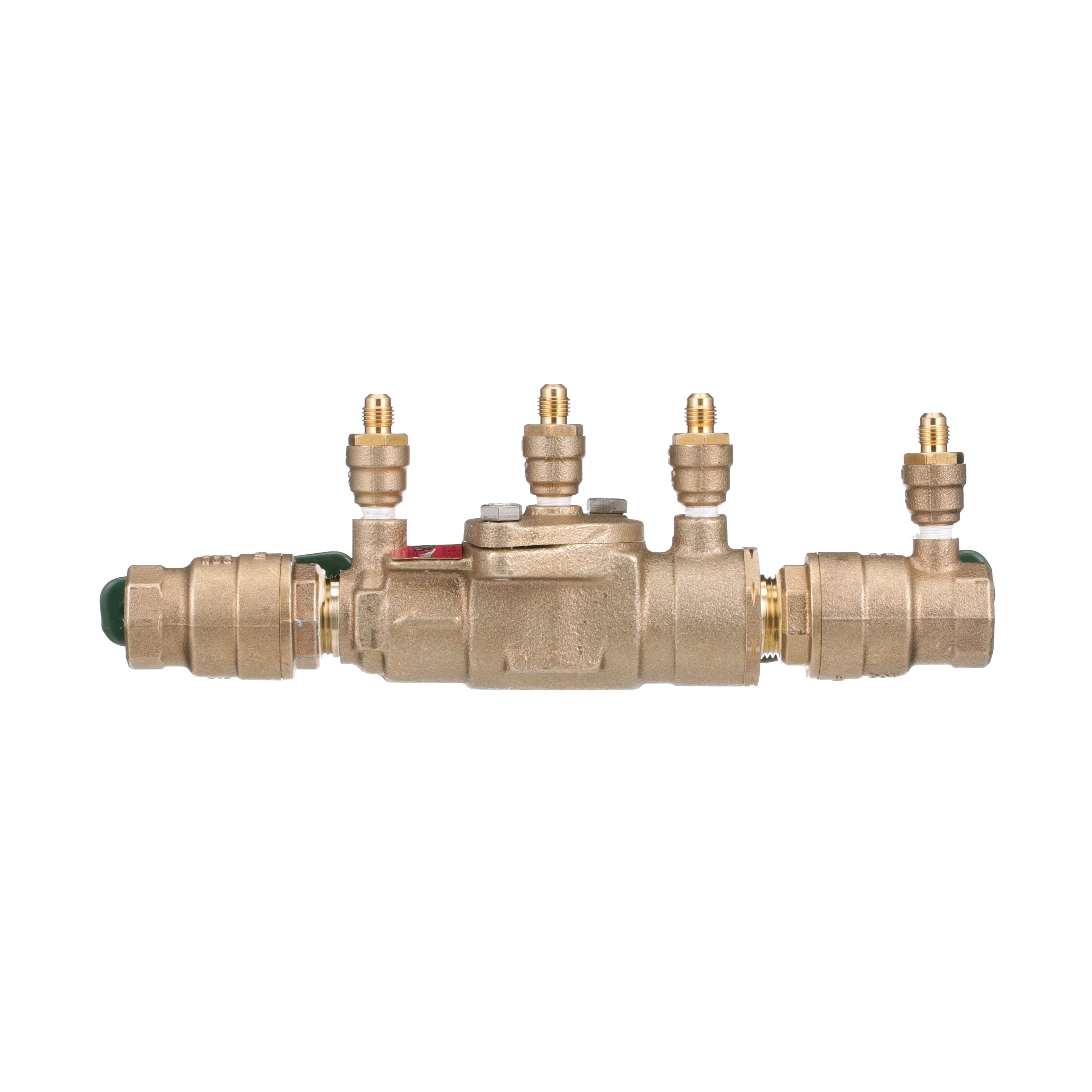

This 1 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.
Series Name: LF007
Type: Double-check backflow preventer
Inlet Diameter: 1-in
Inlet Size in Inches: 1-in
Outlet Diameter: 1-in
Inlet Thread Type: FNPT
Material: Bronze
Maximum Pressure: 175 PSI
Outlet Thread Type: FNPT
Compatible Pipe Material: Multi-Purpose
CA Residents: Prop 65 Warning(s): Yes
Complies with Federal Lead Guidelines: Yes
Warranty: 1-year limited
UNSPSC: 40141700
